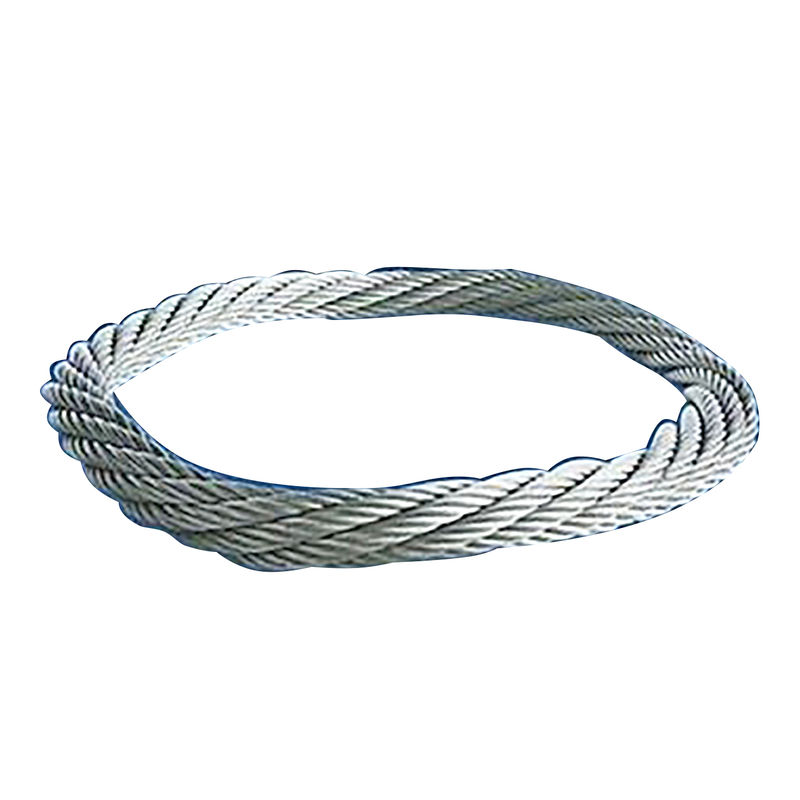

Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

Marka Adı:	Honghao
Model Numarası:	HH-1858
Adedi:	1
fiyat:	$750-800

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Chongqing, Çin

Çelik sınıfı:

Paslanmaz çelik

Malzeme:

Paslanmaz çelik

Gerilme mukavemeti:

1570mpa, 1620mpa, 1670mpa, 1770mpa, 1960mpa

Tolerans:

±% 1

Min kırma yükü:

125kn ila 30804kn

Tek bacak yükü:

25kn ila 6161kn

Çift bacak yükü:

45kn ila 11089kn (0 ~ 90 °), 35kn ila 8625kn (90 ~ 120 °)

Ağırlık:

0.67kg/m ila 180.13kg/m

Minimum bükülme yarıçapı:

1.5 Dia

En kısa askı çevresi:

50 kez askı çapı

Emniyet faktörü:

5 (d≤60mm), 6.31-0.022d (60 150mm)

İşleme hizmeti:

Bükülme

Yüzey tedavisi:

Galvanizli veya galvanizsiz

Standart:

ASTM, GB, DIN, JIS, AISI, BS

Paketleme:

1000m rulo, 500m rulo, 300m rulo, 200m rulo veya özel

Vurgulamak:

stainless steel wire rope sling

galvanized lifting wire rope

ANSI standard wire rope

Ürün Açıklaması

Stainless Steel Grommet Wire Rope Lifting Sling Pressed Endless with Bending Processing Service ANSI Standard

Product Attributes

Attribute	Value
Steel Grade	Stainless Steel
Standard	AISI
Type	Galvanized
Application	Hanging lamp, pergola, flagpole, clothesline etc.
Alloy Or Not	Non-Alloy
Special Use	Cold Heading Steel
Tolerance	±1%
Processing Service	Bending
Grade	Stainless Steel
Delivery Time	15-21 days
Product Name	Wire Rope Sling
Material	Stainless Steel

Product Specifications

Standard	ASTM
Place of Origin	China
Brand	Honghao
Surface	Galvanized, Ungalvanized
Tensile Strength	1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Material	Stainless Steel / High Carbon Steel
Standard	ASTM, GB, DIN, JIS, AISI, BS
Term of Payment	L/C, T/T, D/P, Western Union, One Touch
Packing	1000m roll, 500m roll, 300m roll, 200m roll or as your requirements

Product Features

Grommet sling spliced by wire rope with class B or AB, fiber core, nominal tensile strength 1670MPa
Available in three surface treatments: galvanized with lubrication, galvanized without lubrication, and ungalvanized
Breaking load varies based on wire rope capability selection
Minimum breaking load is 5 times working load with adjustable safety factors
Ideal for limited space lifting with minimum sling circumference of 50 times sling diameter
Minimum bend radius of lifting point area not less than 1.5 times diameter
Material: Galvanized or Stainless Steel
High tensile strength, good flexibility, low elongation
Widely used in conveyor belt systems

Technical Specifications

ITEM No.	Min. Breaking Load (kN)	Single Leg Working Load (kN)	Double Legs Working Load (kN) 0~90°	Double Legs Working Load (kN) 90~120°	Weight (kg/m)
WJT15	125	25	45	35	0.67
WJT18	181	36	65	51	0.97
WJT21	246	49	88	69	1.33

Product Images

Packing & Delivery

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements.
